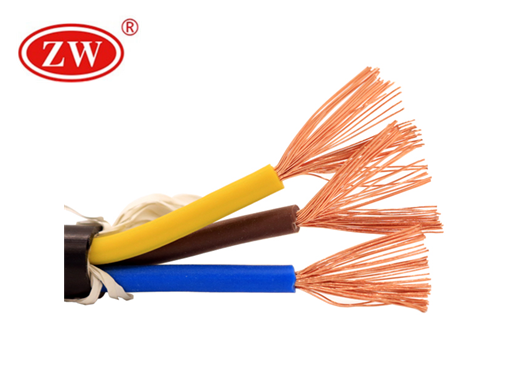

PVC Insulated Flexible Wire

  • Conductor: Copper
  • Insulation: PVC,
  • Insulation Color: White-Blue-Red-Black-Brown
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 300V/500V
  • Test Voltage: 1000V
  • Standard: IEC

Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    PVC Type

  • Sheath

    PVC Type 1

    Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Sheath Colours

    Black

  • Current Carrying Capacity

    For current ratings refer to table IEC.

The Characteristics of PVC Insulated Flexible Wire

Application:
PVC Insulated Flexible Electrical Wire is mainly used for medium and light mobile appliances, instruments, household appliances, power lighting and other flexible use places, They can transmit control signals, but also can transmit power signals, also suitable for laying in the bridge and hose.
Standard:
PVC Insulated Flexible Electrical Wire
Properties:
Good mechanical properties, excellent electrical insulation, good chemical stability and water resistance.
Customer Service:
Being one of the leading PVC Insulated Flexible Wire manufacturers, we always put quality in the first place. In order to guarantee the performance of PVC Insulated Flexible Wire, ZW produce the cable in strict accordance with international standards. Our PVC Insulated Flexible Wire is very popular in the world. We promise to provide the qualified products for our customers. If you to know more information about PVC Insulated Flexible Wire price, just leave your message.

Parameter

Model No. Conductor Insualtion Jacket
Conductor Diameter Max. Resistance at 20°C Thickness Min. Resistance at 70°C Thickness Min. Dia. Max.
(NO/mm) MΩ/km mm MΩ/km mm mm mm
2×0.75 24×0.20 26 0.6 0.011 0.8 6 7.6
2×1.0 32×0.20 19.5 0.6 0.01 0.8 6.4 8
2×1.5 30×0.25 13.3 0.7 0.01 0.8 7.4 9
2×2.5 49×0.25 7.98 0.8 0.009 1 8.9 11
3×0.75 24×0.20 26 0.6 0.011 0.8 6.4 8
3×1.0 32×0.20 19.5 0.6 0.01 0.8 6.8 8.4
3×1.5 30×0.25 13.3 0.7 0.01 0.9 8 9.8
3×2.5 49×0.25 7.98 0.8 0.009 1 9.6 12
4×0.75 24×0.20 26 0.6 0.011 0.8 6.8 8.6
4×1.0 32×0.20 19.5 0.6 0.01 0.9 7.6 9.4
4×1.5 30×0.25 13.3 0.7 0.01 1 9 11
4×2.5 49×0.25 7.98 0.8 0.009 1.1 10.5 13
5×0.75 24×0.20 26 0.6 0.011 0.9 7.4 9.6
5×1.0 32×0.20 19.5 0.6 0.01 0.9 8.3 10
5×1.5 30×0.25 13.3 0.7 0.01 1.1 10 12
5×2.5 49×0.25 7.98 0.8 0.009 1.2 11.5 14
