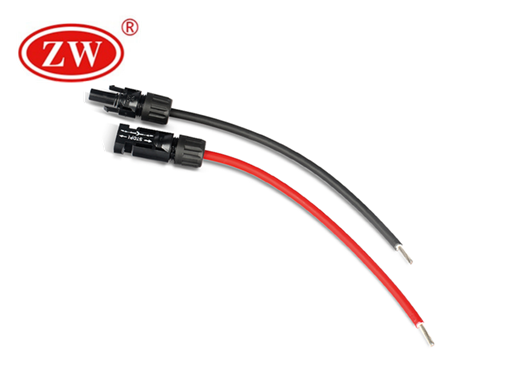

12 AWG 600 Volt Solar Wire

  • Conductor: Tinnd Copper
  • Insulation: XLPO
  • Insulation Color: Red
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage: 3.5 KV
  • Standard: TUV,UL

600 Volt Wire Specification

  • Conductor

    Plain Annealed Copper Class 5.

  • Insulation

    XLPO

  • Sheath

    XLPO

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red or Black

  • Sheath Colours

    Red or Black

The Characteristics of 600 Volt Wire

Application:
 12 AWG 600 Volt Solar Wire is appropriate for use in solar power applications that require 600 volt rating. For use in grounded interconnection and ungrounded Photovoltaic power systems.
 12 AWG 600 Volt Solar Wire Standard:
Adapted to PV systems, 2 Pfg 1169 / 08.2007 and UL.
 12 AWG 600 Volt Solar Wire Electrical Parameters:
Voltage Rating : AC 0.6 / 1.0 kV Max. PV - System Voltage : DC up to 2.0 kV possible Max. Permissible Operating Voltage in AC Systems : 0.7 / 1.2 kV Max. Permissible Operating Voltage in DC Systems : 0.9 / 1.8 kV Test Voltage : AC 6 kV / DC 10 kV (15 min.)
12 AWG 600 Volt Solar Wire Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.
Core Identification : Red, black or natural
Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.
600 Volt Wire Advantage:
 600 Volt Solar Wire modules operate at high temperatures and are exposed to a variety of environmental conditions.
600 Volt Wire is manufactured for use in photovoltaic applications, while USE-2 cable types are typically manufactured for underground service entrance applications.
Both cable types commonly contain XLPE insulation and can be sunlight resistant and/or rated for direct burial.
FAQ:
What is 600 Volt Wire used for?
600V Wire is uesed for solar, residential, commercial, and industrial lighting and power. According to environments, we choose the right cable.
What is size is 600 Volt Wire?
The size is from 16 AWG to 1000 MCM, 1.0sqmm to 240sqmm. Can be directly buried, free air, pipes, underground pipes.
Do you have 600 Volt Wire in stocK?
Yes, we have 600V wire in stock. Just tell me your request, I will choose the right cable for you.


600 Volt Wire Parameter

Construction Conductor Construction Conductor Outer Resistance Max Current Carring Capacity

n×mm2

n×mm

mm

mm

Ω/Km

A

1×1.5

30×0.25

1.58

4.90

13.3

30

1×2.5

50×0.256

2.06

5.45

7.98

41

1×4.0

56×0.3

2.58

6.15

4.75

55

1×6

84×0.3

3.15

7.15

3.39

70

1×10

142×0.3

4.0

9.05

1.95

98

1×16

228×0.3

5.7

10.2

1.24

132

1×25

361×0.3

6.8

12.0

0.795

176

1×35

494×0.3

8.8

13.8

0.565

218

1×50

418×0.39

10.0

16.0

0.393

280

1×70

589×0.39

11.8

18.4

0.277

350

1×95

798×0.39

13.8

21.3

0.210

410

1×120

1007×0.39

15.6

21.6

0.164

480
