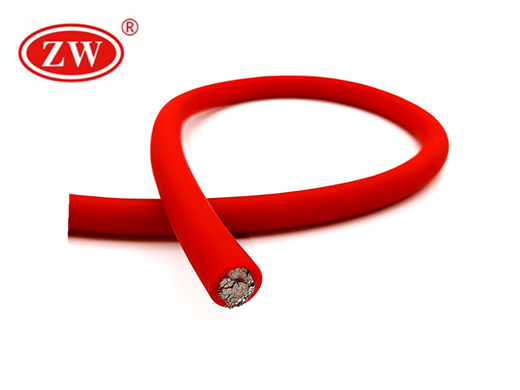

24v Battery Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red,Black
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC

Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    PVC

  • Sheath

    PVC

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red,Black

  • Sheath Colours

    Red,Black

  • Current Carrying Capacity

    For current ratings refer to IEC

Product Description

Application:
24v battery cable used in the electromtor of cars, trucks, tractors, off-road vehicles and electronic tractors and also in the connection of communication batteries, power converters, computers, solar and wind-power batteries.Battery cable available in 2 sizes. The first is a standard duty 110 amp flexible cable, suitable for use with small plugs and small capacity engines. A heavy duty 135 amp or 170 amp extra heavy duty flexible cable is also available. Designed for use in tough working environments and resistant to oil and petrol.
Standard:
24v Battery Cable
Extra Flexibility:
When high flexibility required, battery cable shall make a substitute.
Battery Cable Advantage:
High performance of resistant to abrasion, cracking and a variety of chemicals including gasoline, oils, diesel fuels, grease, and acid.
Customer Service:
Being one of the leading 24v Battery Cable manufacturers, we always put quality in the first place. In order to guarantee the performance of 24v Battery Cable, ZW produce the cable in strict accordance with international standards. Our 24v Battery Cable is very popular in the world. We promise to provide the qualified products for our customers. If you to know more information about 24v Battery Cable price, just leave your message.

Parameter

Conductor Size Stranding(0.25mm)225 Conductor Diameter(in.) Insulation Thickness(in.) Total Diameter(in.) Max Amp
6 AWG 253 0.20 0.06 0.32 115
4 AWG 370 0.23 0.06 0.35 150
2 AWG 634 0.30 0.06 0.42 205
1/0 1004 0.47 0.08 0.53 285
2/0 1255 0.43 0.08 0.59 325
4/0 2047 0.56 0.08 0.72 440
