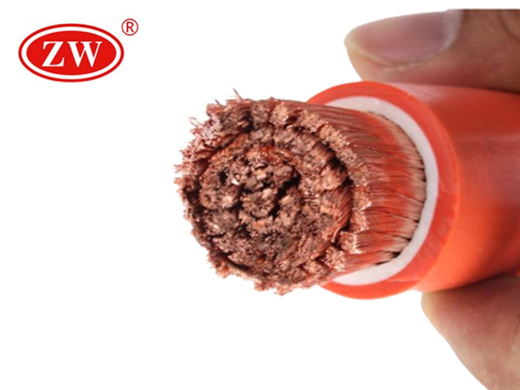

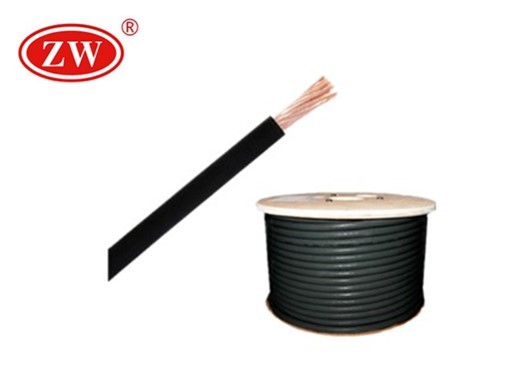

2/0 Battery Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red,Black
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC

2/0 Battery Cable Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    PVC

  • Sheath

    PVC

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red,Black

  • Sheath Colours

    Red,Black

  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of 2/0 Battery Cable

Application:
2/0 battery cable sold by the foot. Made from 133 strands of true 20 gauge copper conductor wire covered in a durable, high temperature resistant red PVC insulation with a nominal outside diameter of 0.605 inches. Rated for use up to 60 volts, the 20 gauge copper stranding is highly conductive maximizing current flow while still being flexible. Ideal for connecting batteries, starters, amplifiers, and for solar use.
Standard:
2/0 Battery Cable
Extra Flexibility:
When high flexibility required, battery cable shall make a substitute.
Battery Cable Advantage:
High performance of resistant to abrasion, cracking and a variety of chemicals including gasoline, oils, diesel fuels, grease, and acid.
Customer Service:
Being one of the leading Cable manufacturers, we always put quality in the first place. In order to guarantee the performance of 2/0 Battery Cable, ZW produce the cable in strict accordance with international standards. Our 2/0 Battery Cable is very popular in the world. We promise to provide the qualified products for our customers.

2/0 Battery Cable Parameter

Conductor Size Stranding(0.25mm)225 Conductor Diameter(in.) Insulation Thickness(in.) Total Diameter(in.) Max Amp
6 AWG 253 0.20 0.06 0.32 115
4 AWG 370 0.23 0.06 0.35 150
2 AWG 634 0.30 0.06 0.42 205
1/0 1004 0.47 0.08 0.53 285
2/0 1255 0.43 0.08 0.59 325
4/0 2047 0.56 0.08 0.72 440
