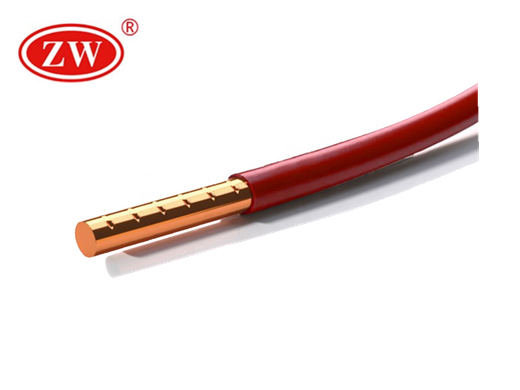

2.5mm Solid House Wire

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC

2.5mm wire Specification

  • Conductor

    Plain Annealed Copper Class 1

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Red

  • Sheath Colours

    Red

  • Current Carrying Capacity

    For current ratings refer to table 4F3 of BS7671 IEC

The Characteristics of 2.5mm House Wire

Application:
2.5mm house wire is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
Standard:
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as t he requirements of customers.
Brief construction:
1) Conductor: Copper or aluminium, Solid
2) Insulation: PVC
3) Number of cores: Single core
4) Other special characteristics: Design and manufacture according t o the requirements of customers.
Service performance:
1) Long-term working temperature: not be higher than 70°C 2) When laying the cable, the ambient temperature should not lower than 0°C
Structure diagram:
2.5mm Solid House Wire

2.5mm wire Parameter

Nominal section(mm2) No./dia. of core(mm) Average dia.(mm) Reference weight(kg/km) Conductor resistance at 20℃(Ω/km)
1.5 1/1/13 3.5 20.6 12.1
2.5 1/1.76 4.2 33 7.41
4.0 1/2.24 4.8 48 4.61
6.0 1/2.65 5.6 68 3.08
10.0 7/1.35 7.6 115 1.83
16.0 7/1.70 8.8 176 1.15
25.0 7/2.14 11 272 0.727
