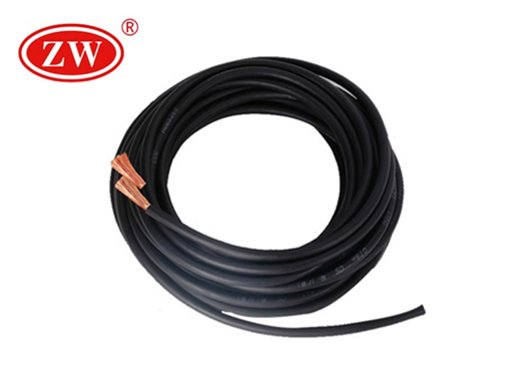

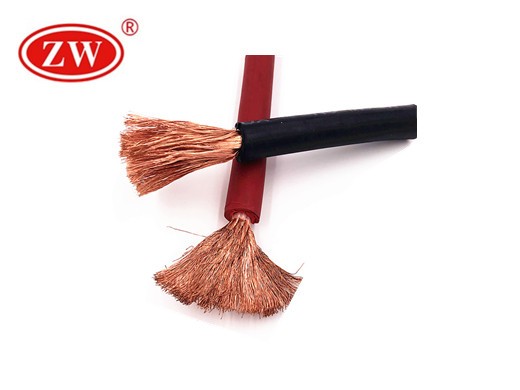

4 Gauge Welding Cable

  • Conductor: Copper
  • Insulation: Rubber
  • Insulation Color: Red,Black
  • Temperature Range: -30°C to +90°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC, GB,UL

4 Gauge Welding Cable Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    Rubber

  • Sheath

    Rubber

  • Min Operating Temperature

    -30°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red,Black

  • Sheath Colours

    Red,Black

  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of 4 Gauge Welding Cable

Application:
4 Gauge Welding Cable can be used as entertainment or stage lighting cables for movie theatres, lighting and sound systems, and communication vans. Other possible uses for welding cable include battery cables for cars, inverter cables, and as a cheaper alternative to pendant/reeling cable on hoists and cranes. For example, many solar power installations use welding cable extensively to connect solar panels, battery banks, and converters.
Standard:
4 Gauge Welding Cable
Extra Flexibility:
When high flexibility required, welding cable shall make a substitute.
Feature:
Resistant to cuts, tears and abrasion in addition to moisture. Welding Wire offers good color retention along with great flexibility.
Suitable Uses:
Welding Cable is used for connection from electrode holder and clamp to arc welder, bus, welding box or transformer.May also be used in automotive applications where high flexibility and superior abrasion and chemical resistance is required.
Customer Service:
Being one of the leading Welding Cable manufacturers, we always put quality in the first place. In order to guarantee the performance of 4 awg Welding Cable, ZW produce the cable in strict accordance with international standards. Our 4 Gauge Welding Cable is very popular in the world. We promise to provide the qualified products for our customers.

4 Gauge Welding Cable Parameter

Conductor Size Stranding(0.25mm)225 Conductor Diameter(in.) Insulation Thickness(in.) Total Diameter(in.) Max Amp
6 AWG 253 0.20 0.06 0.32 115
4 AWG 370 0.23 0.06 0.35 150
2 AWG 634 0.30 0.06 0.42 205
1/0 1004 0.47 0.08 0.53 285
2/0 1255 0.43 0.08 0.59 325
4/0 2047 0.56 0.08 0.72 440
