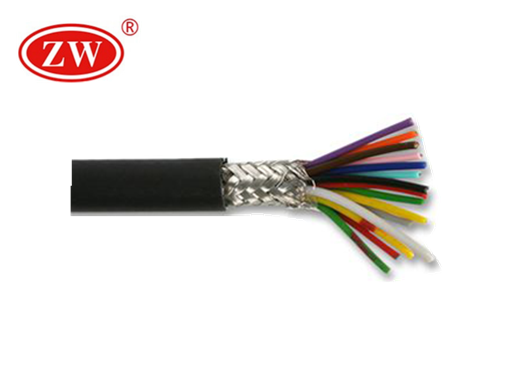

600V Shielded Power Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Brown, Blue, Yellow-Green,White, Blue, Brown and etc
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: UL,GB,IEC

Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Blue, Yellow-Green,White, Blue, Brown and etc

  • Sheath Colours

    Black,White

  • Current Carrying Capacity

    For current ratings refer to UL

Product Description

Application:
600V Shielded Power Cable are electrical cables that contain insulating conductors encased in a standard conductive layer. The shield can be made from strands of braided copper (or a similar metal), a spiral copper tape, or some other conducting polymer. The importance of shielded cables cannot be stressed enough.
Shielded Cale can be used as a measurement, detection and control cable. Used in machine tool manufacturing, equipment installation power plant, heating and air-conditioning systems, refrigeration equipment, office automation equipment and data processing system.
Standard:
UL,GB, and IEC
600V Shielded Power Cable Structure:
Insulation: Special hardness heat-resistant and flame- retardant PVC insulation.
Core Color: Any color .
Shielding: PET-Al-PET Tape + bare copper or tinned copper braiding + same specifications of drain wire .Jacket: Mixed 80C heat resistant and flame retardant.
PVC, Pass the VW-1 flame test standard. .Jacket Color: Black(RAL9005) Green(RAL6018)Orange(RAL2003) Violet(RAL4001) Special colors ,can be customized
Shielded Cable Characteristic:
Good oil resistant, abrasion resistant, chemical solventresistant, radiation resistant.
Short twist pitch, stable transmission characteristics .
Double shielding,resistance to electromagnetic interference
Bending radius allowance of the cable.
Our Service:
(1) MUTUAL BENEFIT: Our offer will be reasonable, our price will be cheaper in the same quality.
(2) CUSTOMIZE: We can make the product as your request, Specification and Quality can meet your request.
(3) OEM: (1)Printing your Logo.
(4)Designing your packing.
(5) MIX ORDER: We accept mix order, different model and small quantity order.
(6) AFTER SERVICE: 70 Years Guarantee.
Customer Service:
Being one of the leading 600V Shielded Power Cable manufacturers, we always put quality in the first place. In order to guarantee the performance of 600V Shielded Power Cable, ZW produce the cable in strict accordance with international standards. Our 600V Shielded Power Cable is very popular in the world. We promise to provide the qualified products for our customers. If you to know more information about 600V Shielded Power Cable price, just leave your message.

Parameter

Model AWG Conductor Insualtion Spiral Jacket
Conductor Diameter Max. Resistance at 20°C Thickness OD Thickness Min. Dia.
(NO/mm) MΩ/km mm mm mm mm
30 7/0.1 381 0.4 1.1 32/0.10 0.5 2.1
28 7/0.127 239 0.4 1.2 34/0.10 0.5 2.2
26 7/0.16 150 0.4 1.3 38/0.10 0.5 2.3
24 11/0.16 942 0.4 1.4 42/0.10 0.5 2.4
22 17/0.6 59.4 0.4 1.55 43/0.10 0.5 2.55
20 26/0.16 36.7 0.44 1.80 45/0.12 0.55 2.85
18 41/0.16 23.2 0.44 2.05 51/0.12 0.55 3.5
16 26/0.254 14.6 0.46 2.4 55/0.12 0.56 3.8
