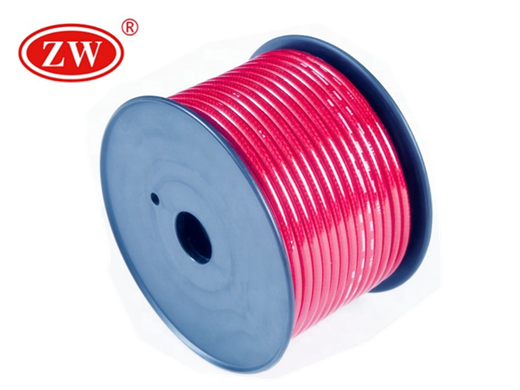

Battery Cable 0 Gauge

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red,Black
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC

Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    PVC

  • Sheath

    PVC

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red,Black

  • Sheath Colours

    Red,Black

  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of Battery Cable 0 Gauge

Application:
Battery Cable 0 Gauge is specially designed to meet the demands of various environments while staying extremely flexible. Full AWG sized copper conductor made from 99.9% pure annealed electrolytic copper, will you get maximum power. The insulation and jacket compounds are specially formulated to stay flexible even in cold weather and carry a -49C to 105C temperature rating. The jacket is resistant to chemicals, water, abrasions, oil, sunlight and has a color coded dual extrusion jacket with a white inner insulation which would show any damage to the outer cable more clearly. This cable is rated up to 600 Volts and is suitable for use in automotive applications, solar battery bank wiring, power inverter battery cables, marine battery cables and many other applications calling for a durable yet flexible battery cable. 0 AWG has 1045 strands of copper (30 AWG ea strand, rope lay Class K) with an Outside Diameter of stranded copper at 0.397 inches (nominal) and an overall Outside Diameter of finished cable at 0.610 inches (nominal). The 0 is rated to handle 285 amps continuous outside of engine space (242 amps continuous inside engine space) and weighs 0.460 lbs per foot.
Standard:
Battery Cable 0 Gauge

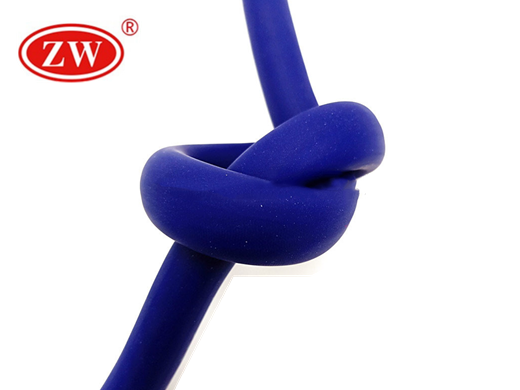

Extra Flexibility:
When high flexibility required, battery cable shall make a substitute.
Battery Cable Advantage:
High performance of resistant to abrasion, cracking and a variety of chemicals including gasoline, oils, diesel fuels, grease, and acid.
Customer Service:
Being one of the leading Battery Cable 0 Gauge manufacturers, we always put quality in the first place. In order to guarantee the performance of Battery Cable 0 Gauge, ZW produce the cable in strict accordance with international standards. Our Battery Cable 0 Gauge is very popular in the world. We promise to provide the qualified products for our customers. If you to know more information about Battery Cable 0 Gauge price, just leave your message.

Parameter

Conductor Size Stranding(0.25mm)225 Conductor Diameter(in.) Insulation Thickness(in.) Total Diameter(in.) Max Amp
6 AWG 253 0.20 0.06 0.32 115
4 AWG 370 0.23 0.06 0.35 150
2 AWG 634 0.30 0.06 0.42 205
1/0 1004 0.47 0.08 0.53 285
2/0 1255 0.43 0.08 0.59 325
4/0 2047 0.56 0.08 0.72 440
