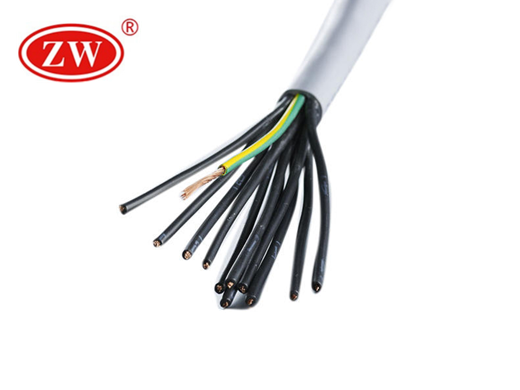

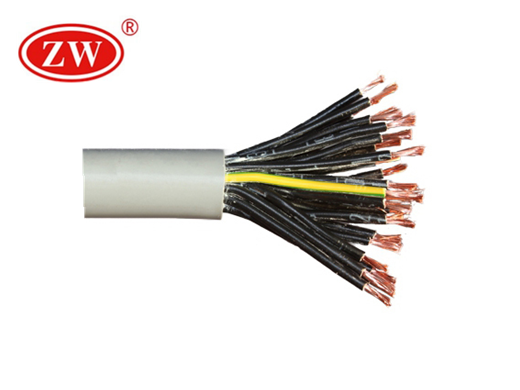

Flexible Control Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red-Yellow-Green-Blue-etc
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage:3.5KV
  • Standard: IEC

Specification

  • Conductor

    Plain Annealed Copper Class 2

  • Insulation

    PVC Type TI4 to BS EN 50363-3

  • Sheath

     PVC Type 10 to BS 7655-4.2

  • Min Operating Temperature

    -20°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Multi Cores

  • Sheath Colours

    Black or Grey

  • Current Carrying Capacity

    For current ratings refer to IEC Strandard

The Characteristics of Flexible Control Cable

Application:
Flexible Control Cable is used in robot systems and mobile equipment, production lines, robot arms and other flexibility occasions. used for connection control in industrial environment, cable can have longer lifetime when work under dry or wet indoor environment.Suitable for long stroke, heavy machinery equipment (hand), high pollution of indoor environmen
Standard:
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc.
Character and Relevant Parameters:
1. Long-term service temperature of the cable conductor: 70°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
5. Minimun bending radius:
Non armored ≥ out diameter of cable 6 times
Armored layer or copper tape shielded ≥ outer diameter of cable 12 times
Shielded layer soft cable ≥ outer diameter of cable 6 times
Customer Service:
Being one of the leading Flexible Control Cable manufacturers, we always put quality in the first place. In order to guarantee the performance of Flexible Control Cable, ZW produce the cable in strict accordance with international standards. Our Flexible Control Cable is very popular in the world. We promise to provide the qualified products for our customers. If you to know more information about Flexible Control Cable, just leave your message.

Flexible Control Cable Parameter:

Type Name Section Area(mm2) No. of Core

KVV

Copper Conductor, PVC Insulated and Sheathed control cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14

KVVP

Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14

KVVP2

Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14

KVVP2-22

Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14

KVV22

Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14

KVVR

Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14

KVVRP

Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14
