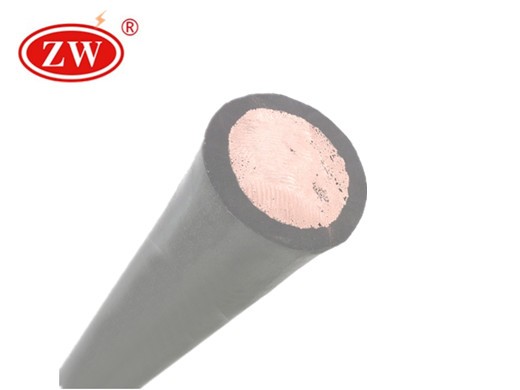

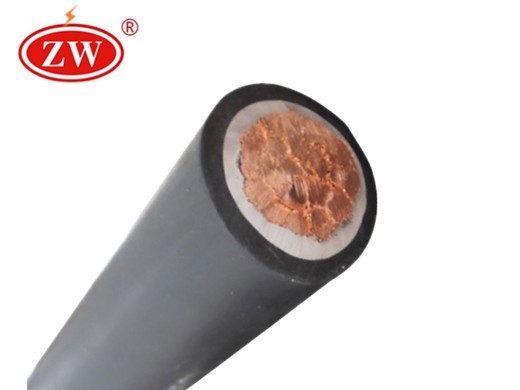

Flexible Welding Cable

  • Conductor: Copper
  • Insulation: Rubber
  • Insulation Color: Red,Black
  • Temperature Range: -30°C to +90°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC, GB,UL

Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    Rubber

  • Sheath

    Rubber

  • Min Operating Temperature

    -30°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red,Black

  • Sheath Colours

    Red,Black

  • Current Carrying Capacity

    For current ratings refer to IEC

Product Description

Application:
Flexible welding cable with a Heat and Oil Resistant, Flame-Retardant (HOFR) outersheath. It is designed to transmit high currents from electric welding machines to the welding tool itself. 0361TQ cables are constructed with Class 6 extra flexible conductors for cables with a cross-sectional area up to 95mm2 and Class 5 flexible conductors for cable sizes over 120mm2, allowing for flexible use under rough conditions including on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, and for manually and automatically operated line and spot welding machines.
Standard:
Henan Central Plain Cables and Wires Co,.Ltd.
Extra Flexibility:
When high flexibility required, welding cable shall make a substitute.
Feature:
Resistant to cuts, tears and abrasion in addition to moisture. Welding Wire offers good color retention along with great flexibility.
Suitable Uses:
Welding Cable is used for connection from electrode holder and clamp to arc welder, bus, welding box or transformer. May also be used in automotive applications where high flexibility and superior abrasion and chemical resistance is required.

Parameter

Conductor Size Max Diameter of Wire(0.21mm) Coated Layer Thinckness (mm) Sheath Thickness(mm) Total Diameter(mm) Max. resistance at 20℃ (Ω/km)
16 0.21 2.0 1.3 10.3 1.16
25 0.21 2.0 1.3 11.5 0.785
35 0.21 2.0 1.3 13 0.536
50 0.21 2.0 1.5 15 0.379
70 0.21 2.5 1.6 17 0.268
95 0.21 2.5 1.7 19.5 0/198
