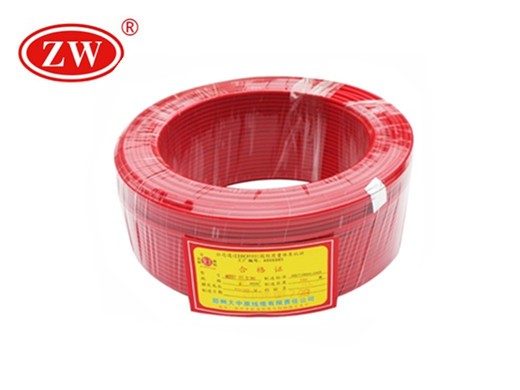

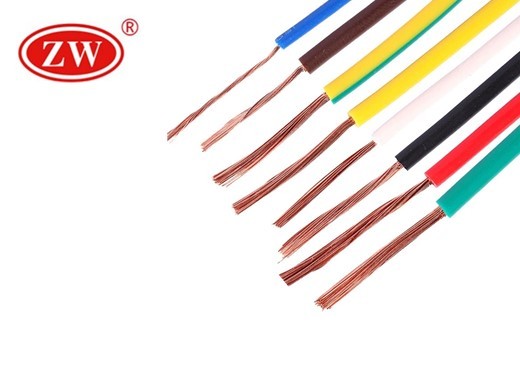

H05V-U, H05V-R, H05V-K Electrical Wire

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC

H05V-K Wire Specification

  • Conductor

    Plain Annealed Copper Class1,2 and 5.

  • Insulation

    PVC

  • Sheath

    PVC

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Any Colors

  • Sheath Colours

    Any Colors

  • Current Carrying Capacity

    For current ratings refer to table 4F3 of BS7671 IEC

H05V-K Cable Description

Application:
 H05V-K Wires are suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
Standard:
H05-K Cable implements the standards GB/T5023, equivalent to IEC60 227. And H05-k cable can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as t he requirements of customers.
Brief construction:
1) Conductor: class 1 solid (H05V-U),
                       class 2 stranded (H05V-R)
                       class 5 flexible (H05V-K)
2) Insulation: PVC
3) Number of cores: Single core
4) Other special characteristics: Design and manufacture according t o the requirements of customers.
Service performance:
1) Long-term working temperature: not be higher than 70°C
2) When laying the cable, the ambient temperature should not lower than 0°C
Structure diagram:
 H05V-K Electrical Wire

H05V-K Wire Parameter

Nominal section(mm2) No./dia. of core(mm) Average dia.(mm) Reference weight(kg/km) Conductor resistance at 20℃(Ω/km)
1.5 7/0.52 3.5 20.6 12.1
2.5 7/0.67 4.2 33 7.41
4.0 7/0.85 4.8 48 4.61
6.0 7/1.04 5.6 68 3.08
10.0 7/1.35 7.6 115 1.83
16.0 7/1.70 8.8 176 1.15
25.0 7/2.14 11 272 0.727
