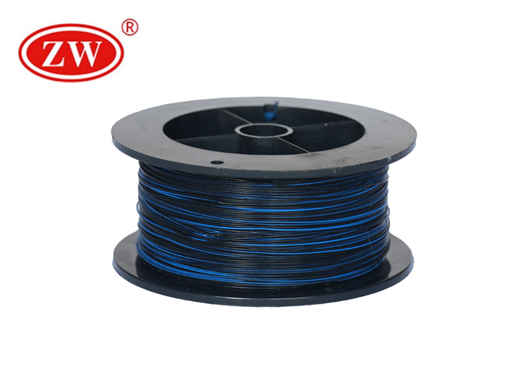

High Temperature Wire

  • Conductor:Tinned Copper
  • Insulation: FEP
  • Insulation Color: Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple
  • Temperature Range: 600V
  • Standard: ISO9001, UL, RoHS

High Temperature Wire Specification

  • Conductor

    Tinned Copper

  • Sheath

     FEP

  • Min Operating Temperature

    -30°C

  • Max Operating Temperature

    200°C

  • Core Colours

    Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple

  • Current Carrying Capacity

    For current ratings refer to UL Strandard

The Characteristics of High Temperature Wire

Application:
High Temperature Wire is used for critical physiological and medical applications where small diameters, long flex-life and non-toxic insulations are of primary consideration. It’s designed for long usage in flow probes and pressure measuring instruments. It also withstands severe, repeated flexing in very high and low temperatures Ideal for any application where high temperature protection, flexibility, wire thinness, and a smooth, low coefficient of friction insulated wire is desired.
Standard:
UL,RHos
Advantage:
Very Good Mechanical Strength and Abrasion Resistance.
Excellent Electrical Insulating Properties Excellent Thermal Stability Resistant to Chemicals and Solvents.
Excellent Resistance to Ozone and Oxidation Good Flexibility Good Lubricity (low coefficient of friction).
Customer Service:
Being one of the leading Wire manufacturers, we always put quality in the first place. In order to guarantee the performance of high temperature cable , ZW produce the cable in strict accordance with international standards. Our High Temperature Wire 18 awg and high temperature wire 12 awg are very popular in the world. We promise to provide the qualified products for our customers. If you to know more information about High Temperature Wire price, just leave your message.
FAQ:
What is high temperature wire?
High temperature cable is usually defined as a cable rated at 125°C or higher, although high temperature can also refer to a temperature rating as low as 90°C. High temperature cables can be single-core or multi-core cables. ZW has been manufacturing high temperature cables for 20 years.
What is heat resistant wire?
Heat resistant wire refers to the insulated wire and insulating coating material. Depending on the type of insulation used, heat resistant wires can be classified as Teflon wire, silicone wire  and high temperature  braided wires. We can provide high quality heat resistant wires to meet customer requirements.
Do you accept lower MOQ?
Yes, we can accpet lower MOQ. Most high temperature wires have in stock.

High Temperature Wire Parameter

Conductor Insulation Max.Conductor Resistance DC 20ºC Ω/km Packing
AWG Conductor Construction No./dia.(mm) Diameter(mm) Insulation Thickness(mm) Out Diameter(mm) m/coil
36 7/0.05 0.15 0.085 0.32 1900 305
34 7/0.064 0.19 0.075 0.34 900 305
34 19/0.04 0.2 0.07 0.34 900
32 7/0.08 0.24 0.065 0.38 588.85 305
32 19/0.05 0.25 0.1 0.38 588.85
30 7/0.1 0.3 0.1 0.5 381 305
30 19/0.06 0.3 0.12 0.5 381
28 7/0.127 0.38 0.12 0.62 239 305
26 7/0.16 0.48 0.16 0.72 150 305
24 7/0.02 0.6 0.2 0.92 94.2 305
22 7/0.254 0.76 0.2 1.16 59.4 610
20 7/0.32 0.96 0.2 1.36 36.7 610
18 19/0.235 1.18 0.2 1.58 23.2 610
16 19/0.3 1.5 0.2 1.9 14.2 610
