House Wire

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC

House Wire Specification

  • Conductor

    Plain Annealed Copper Class 2 to BS EN 60228

  • Insulation

    PVC Type TI4 to BS EN 50363-3

  • Sheath

    PVC Type 10 to BS 7655-4.2

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Red

  • Sheath Colours

    Red

  • Current Carrying Capacity

    For current ratings refer to table 4F3 of BS7671 IEC

The Characteristics of House Wire

Application:
House wires are suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
Standard:
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as t he requirements of customers.
Brief construction:
1) Conductor: Copper or aluminium, Solid
2) Insulation: PVC
3) Number of cores: Single core
4) Other special characteristics: Design and manufacture according t o the requirements of customers.
Service performance:
1) Long-term working temperature: not be higher than 70°C
2) When laying the cable, the ambient temperature should not lower than 0°C

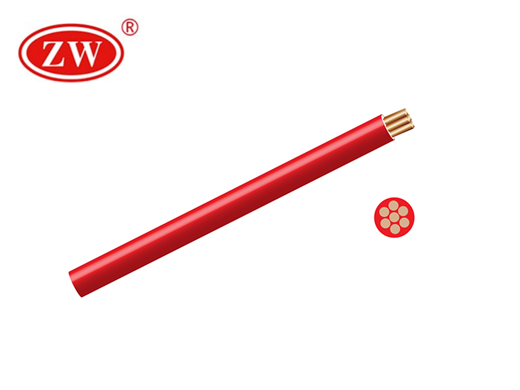

Structure diagram:
house wire
FAQ:
Which wire is best for home wiring?
ZW is cable manufacturer since 1993. We have different house wire size like 2.5mm wire and 4mm wire.
Is blue live or neutrual?
Blue wire is neutral.
Do you have any certification for house wire?
We have CE and IEC.
What does house wire color means?
The red wire generally represents the fire wire, and the blue wire represents the neutral wire in a three-wire circuit. The yellow and green wires represent the ground wire, which is used for safe use. Home wiring can be distinguished not only by color, but also by meter for more accurate results.

House Wire Parameter

Nominal section(mm2) No./dia. of core(mm) Average dia.(mm) Reference weight(kg/km) Conductor resistance at 20℃(Ω/km)
1.5 7/0.52 3.5 20.6 12.1
2.5 7/0.67 4.2 33 7.41
4.0 7/0.85 4.8 48 4.61
6.0 7/1.04 5.6 68 3.08
10.0 7/1.35 7.6 115 1.83
16.0 7/1.70 8.8 176 1.15
25.0 7/2.14 11 272 0.727
