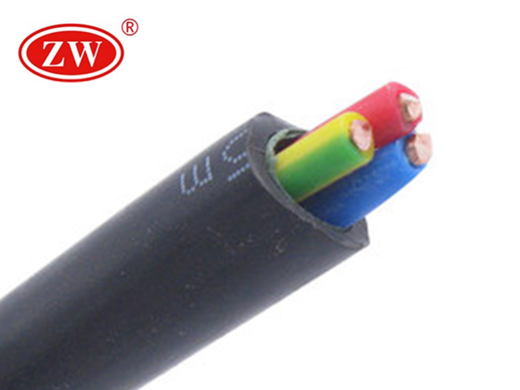

Low Smoke Zero Halogen LSZH Cables

  • Conductor: Copper
  • Insulation: XLPE
  • Insulation Color: Red-Yellow-Green-Blue
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage:3.5KV
  • Standard: IEC

Specification

  • Conductor

    Plain Annealed Copper Class 2

  • Insulation

    XLPE

  • Sheath

    LSZH

  • Min Operating Temperature

    -20°C

  • Max Operating Temperature

    70°C

  • Core Colours

    4 Core -Red-Yellow-Green-Blue

  • Sheath Colours

    Black

  • Current Carrying Capacity

    For current ratings refer to IEC Strandard

Low Smoke Zero Halogen LSZH Cables Cables

Low Smoke Zero Halogen LSZH Cables stands for Low Smoke Zero Halogen cable, sometimes also abbreviated as LSOH. They are intended for use in applications where smoke emissions and toxic fumes could pose risks to human health and/or vital equipment in a fire situation. These cables are also sometimes referred to as LSHF (Low Smoke Halogen Free) cables. LSZH cables produce extremely low levels of smoke and toxic fumes with zero acidic gases.These cables are designed for areas where the integrity of the electrical circuit is critical in maintaining power supply. Applications can be found in emergency lightings, control and power circuits, power stations, fire alarm sysems, underground tunnels, communication systems, sewage treatment plants, lifts, escalators and high-rise buildings
Standard:
BS 6724, BS6387, SS299-1, IEC60502-1, IEC60331, IEC60332-1, IEC60332-3, IECC60754, IEC61034
LSZH wire characteristics:
(1) tensile strength than ordinary PVC wire and large: Usually PVC wire tensile strength greater than 1.05Kgf / mm2, while LSZH wire tensile strength greater than 1.2Kgf / mm2;
(2) has good weather resistance (-30 ℃ ~ 105 ℃);
(3) have a good softness (hardness 80-90);
(4) having a non-metastatic (Because this product formulations without the addition of plasticizers, so there will be no shift pleomorphic);
(5) does not produce toxic smoke when burned (will produce a small amount of white smoke);
(6) has a higher volume resistivity: PVC wire is generally 1012 ~ 1015Ω / cm3, is greater than the wire halogen 1016Ω / cm3;
(7) has a good high voltage characteristics: PVC wire and generally resistant to more than 10KV, 15KV and low smoke zero halogen wire up above;
(8) has a good elasticity and viscosity.
Advantage:
LSZH cables, low smoke low halogen characteristics, when a fire occurs, slow the spread, low smoke density, high visibility, harmful gas emissions small, easy evacuation. Combustion gas is less corrosive, but also to avoid damage to equipment, low-halogen, halogen-free, which makes the cable materials greatly enhance the anti-aging and resistance to ultraviolet radiation and other properties, thus extending the life.
