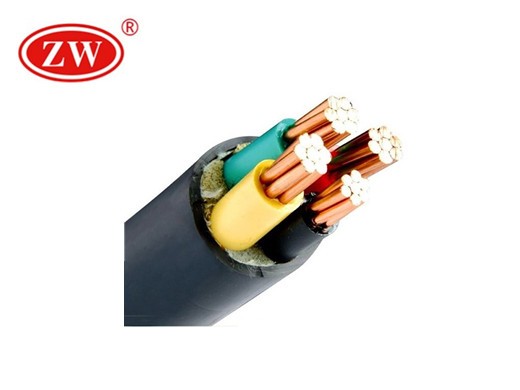

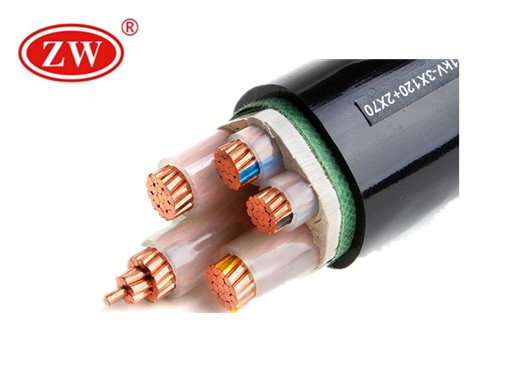

Low Voltage Electric Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red-Yellow-Green-Blue-Black
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage:3.5KV
  • Standard: IEC

Low Voltage Electrical Cable Specification

  • Conductor

    Plain Annealed Copper Class 2 to BS EN 60228

  • Insulation

    PVC Type TI4 to BS EN 50363-3

  • Sheath

     PVC Type 10 to BS 7655-4.2

  • Min Operating Temperature

    -20°C

  • Max Operating Temperature

    70°C

  • Core Colours

    5 Core -Red-Yellow-Green-Blue-Black

  • Sheath Colours

    Black

  • Current Carrying Capacity

    For current ratings refer to IEC Strandard

The Characteristics of Low Voltage Electrical Cable

Application:
Low Voltage Electrical Cable is suitable for use in power distribution lines. For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force
Standard:
Power Cable Strandard
Advantage:
Excellent electric and mechanical characteristics Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant Simple in structure,Convenient to use Reduce costs
Production Range:
Single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2
Nominal Cross-sectional Areas:
1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2
Laboratory Center:
Henan Central Plain Cables and Wires Co,.Ltd.

low voltage Cable FAQ:

What is low voltage cable?

Power low voltage cables (lv cable) are suitable for alternating current (AC) equipment with voltage ratings from 50 to 1000V and direct current (DC) equipment with voltage ratings from 75 to 1500V, and are therefore not affected by high electrical stress.

Can low voltage power cable cause a fire?

Low voltage electrical cable through a certain load current, it will be hot, as the load current increases, the cable surface temperature is higher, if not treated in a timely manner, it will cause a fire!
