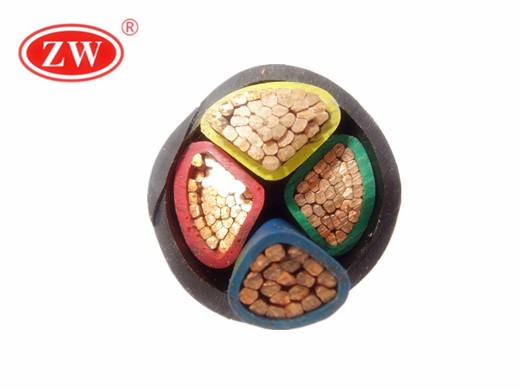

Low Voltage Power Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red-Yellow-Green-Blue
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage:3.5KV
  • Standard: IEC

Low Voltage Power Cable Specification

  • Conductor

    Plain Annealed Copper Class 2 to BS EN 60228

  • Insulation

    PVC Type TI4 to BS EN 50363-3

  • Sheath

     PVC Type 10 to BS 7655-4.2

  • Min Operating Temperature

    -20°C

  • Max Operating Temperature

    70°C

  • Core Colours

    4 Core -Red-Yellow-Green-Blue

  • Sheath Colours

    Black

  • Current Carrying Capacity

    For current ratings refer to IEC Strandard

The Characteristics of Low Voltage Power Cable

Application:
Low voltage power cable can be produced and supplied according to IEC60502,also can manufacture the products that are based on BS and other standards.In addition,under customers’ requirement,we can design and manufacture the products that have special performance.The power cable are used in fixed laying on transmission and distribution electrical lines of 50HZ AC rated voltage up to 6kv.
Standard:
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc.
Advantage:
Excellent electric and mechanical characteristics Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant Simple in structure,Convenient to use Reduce costs
FAQ:
Which kind of cable used in electrical construction?
The scope of work is the laying, connecting, testing and commissioning of low voltage power cables, including all cable supports, cables, cable trays, clamps and connectors. Manufacturers who regularly purchase cable and wire products of the required type and grade from the World Health Organization whose products have been used satisfactorily in similar service for a period of not less than 5 years. Cables shall be standardized to the local standards of the National Electrical Manufacturers Association or any other recognized standard.
What is difference between LV cable and HV cable?
According to the different voltage levels, cables are habitually divided into weak current cables 450 up to 750V, low voltage cables 0.6/1kV, medium voltage 3-35kV, and high voltage 35-110kv, and ultra-high voltage 110-750kV. Low-voltage cable using ordinary PVC and cross-linked polyethylene can be produced, low-voltage has a cross-linked and ordinary distinction, while the medium and high-voltage are not all cross-linked cable, 6kv-35kv using three layers of co-extruded, high-density cross-linked polyethylene production.

Low Voltage Power Cable Parameter

Normal cross-sectional area of conductor (mm2) Normal thickness of insulation (mm) Normal thickness of sheath (mm) Approx. Overall diameter (mm) Approx. weight kg/km
        VV VY VLV VLY
4*4 1 1.8 14 327 294 226 193
4*6 1 1.8 16 421 385 270 233
4*10 1 1.8 19 637 592 382 337
4*16 1 1.8 21 909 858 504 453
4*25 1.2 1.8 24 1334 1273 701 640
4*35 1.2 1.8 27 1749 1681 871 804
4*50 1.4 1.9 29 2255 2179 1067 991
4*70 1.4 2.1 33 3121 3025 1405 1309
4*95 1.6 2.2 37 4264 4148 1881 7965
4*120 1.6 2.4 41 5278 5141 2272 2135
4*150 1.8 2.5 45 6487 6329 2778 2620
4*185 2 2.7 50 8074 7885 3434 3244
4*240 2.2 2.9 56 10497 10268 4403 4174
4*300 2.4 3.1 62 13080 12809 5428 5157
