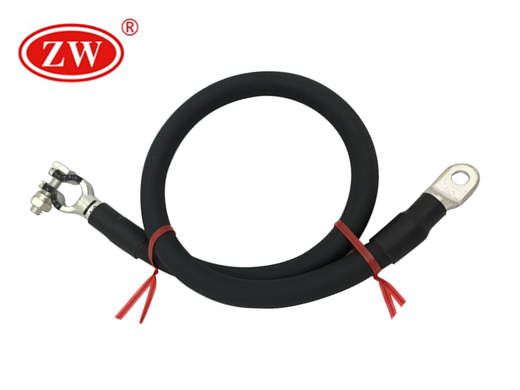

Marine Battery Cable 2 Awg

  • Conductor: Tinned Copper
  • Insulation: PVC
  • Insulation Color: Red,Black
  • Temperature Range: -20°C to +105°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC

Specification

  • Conductor

    Plain Annealed Copper Class 3

  • Insulation

    PVC

  • Sheath

    PVC

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red,Black

  • Sheath Colours

    Red,Black

  • Current Carrying Capacity

    For current ratings refer to IEC

Product Description

Application:
Marine Battery Cable 2 Awg used connecting battery or generator to switch, starter or ground Windlass, Inverter or any high amperage equipment and great for Tractor Trailers, Golf Cart, RV's and off road vehicles
Standard:
Marine Battery Cable 2 Awg
Feature:
Finely stranded tinned copper conductor (Type III)
Color coded PVC insulation
Temperature Range: -20C to 105C Voltage Rating: 600V
Battery Cable Advantage:
High performance of resistant to abrasion, cracking and a variety of chemicals including gasoline, oils, diesel fuels, grease, and acid.
Customer Service:
Marine Battery Cable 2 Awg features flexible, tinned copper stranding which is ideal for your boat wiring needs. Being one of the leading Marine Battery Cable 2 Awg manufacturers, we always put quality in the first place. In order to guarantee the performance of Marine Battery Cable 2 Awg, ZW produce the cable in strict accordance with international standards. The maximum allowable amperage of single conductor 2 AWG marine grade battery cable is 205 amps outside of engine spaces and 190 amps inside the engine space.

Parameter

Conductor Size Stranding(0.25mm)225 Conductor Diameter(in.) Insulation Thickness(in.) Total Diameter(in.) Max Amp
6 AWG 253 0.20 0.06 0.32 115
4 AWG 370 0.23 0.06 0.35 150
2 AWG 634 0.30 0.06 0.42 205
1/0 1004 0.47 0.08 0.53 285
2/0 1255 0.43 0.08 0.59 325
4/0 2047 0.56 0.08 0.72 440
