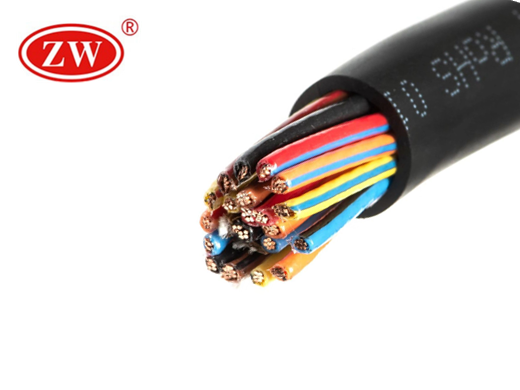

Multi-Core Round Flexible Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Any Color
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC

Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Any Color

  • Sheath Colours

    Black, Grey, White

  • Current Carrying Capacity

    For current ratings refer to IEC

Product Description

Application:
Multi-Core Round Flexible Cables are generally used to connect portable equipment and appliances. Their flexibility allows them to withstand movement or vibration present in specific applications.
Multi-Core Round Flexible Cable Standard:
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as t he requirements of customers.
Multi-Core Round Flexible Cable Structure:
1.Suitable to be installed in electrical power transmission and disteribution lines rated voltage 450/750V.
2.conductor's rated working temperature:≤70
3.Short-circuit temperature160/5sec
4.Cable laying environment≥0
5.Cable laying, bend radius≥10 times cable O.D.
Cable Diameter:
0.05-50mm2
Multi-Core Round Flexible Cable Working conditions:
1.This maximum working temperature of the conductor is 70C.
2 .During having a short (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 160oC.
3. Environment temperature should be no lower than 0oC for laying the cable.
4. Bending radius allowance of the cable.
Multi-Core Round Flexible Cable Construction:
High conductivity bunched copper conductors, insulated and colour coded with a general purpose flexible grade PVC. The cores are then twisted together for maximum flexibility and sheathed with soft flexible grade PVC in a circular configuration..
Customer service on Multi-Core Round Flexible Cable:
Being one of the leading Multi-Core Round Flexible Cable manufacturers, we always put quality in the first place. In order to guarantee the performance of Multi-Core Round Flexible Cable, ZW produce the cable in strict accordance with international standards. Our Multi-Core Round Flexible Cable is very popular in the world. We promise to provide the qualified products for our customers. If you to know more information about Multi-Core Round Flexible Cable price, just leave your message. You can get free sample

Parameter

Model No. Conductor Insualtion Jacket
Conductor Diameter Max. Resistance at 20°C Thickness Min. Resistance at 70°C Thickness Min. Dia. Max.
(NO/mm) MΩ/km mm MΩ/km mm mm mm
2×0.75 24×0.20 26 0.6 0.011 0.8 6 7.6
2×1.0 32×0.20 19.5 0.6 0.01 0.8 6.4 8
2×1.5 30×0.25 13.3 0.7 0.01 0.8 7.4 9
2×2.5 49×0.25 7.98 0.8 0.009 1 8.9 11
3×0.75 24×0.20 26 0.6 0.011 0.8 6.4 8
3×1.0 32×0.20 19.5 0.6 0.01 0.8 6.8 8.4
3×1.5 30×0.25 13.3 0.7 0.01 0.9 8 9.8
3×2.5 49×0.25 7.98 0.8 0.009 1 9.6 12
4×0.75 24×0.20 26 0.6 0.011 0.8 6.8 8.6
4×1.0 32×0.20 19.5 0.6 0.01 0.9 7.6 9.4
4×1.5 30×0.25 13.3 0.7 0.01 1 9 11
4×2.5 49×0.25 7.98 0.8 0.009 1.1 10.5 13
5×0.75 24×0.20 26 0.6 0.011 0.9 7.4 9.6
5×1.0 32×0.20 19.5 0.6 0.01 0.9 8.3 10
5×1.5 30×0.25 13.3 0.7 0.01 1.1 10 12
5×2.5 49×0.25 7.98 0.8 0.009 1.2 11.5 14
