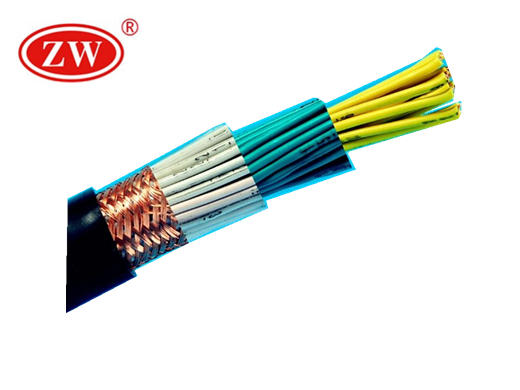

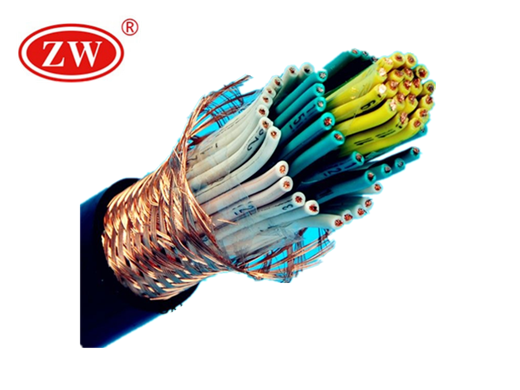

Multi Core Flexible Braid Shield Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Brown, Blue, Yellow-Green,White, Blue, Brown and etc
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC

Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Blue, Yellow-Green,White, Blue, Brown and etc

  • Sheath Colours

    Black,White,Grey

  • Current Carrying Capacity

    For current ratings refer to IEC

Product Description

Application:
Multi Core Flexible Braid Shielded Cables are used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines. Suitable for fixed installations or for flexible use in conditions of light mechanical stress. Outdoor or indoor useage. Good performance.
Standard:
IEC-60502-1
GB/T9330-2008
Multi Core Flexible Braid Shielded Cable Structure:
Insulation: Special hardness heat-resistant and flame- retardant PVC insulation. Core Color: Any color .
Shielding: PET-Al-PET Tape + bare copper or tinned copper braiding + same specifications of drain wire .
Jacket: Mixed 80C heat resistant and flame retardant. PVC, Pass the VW-1 flame test standard. .
Jacket Color: Black(RAL9005) Green(RAL6018)Orange(RAL2003) Violet(RAL4001) Special colors ,can be customized
Multi Core Flexible Braid Shielded Cable Characteristic:
Good oil resistant, abrasion resistant, chemical solvent-resistant, radiation resistant.
Short twist pitch, stable transmission characteristics .
Double shielding, resistance to electromagnetic interference Bending radius allowance of the cable.
After-services:
If you are not 100% satisfied with this cable purchase, simply return the items to us in their original condition and packaging within 30 days of receipt of your order for either an exchange of product or a refund

Parameter

Model AWG Conductor Insualtion Spiral Jacket
Conductor Diameter Max. Resistance at 20°C Thickness OD Thickness Min. Dia.
(NO/mm) MΩ/km mm mm mm mm
30 7/0.1 381 0.4 1.1 32/0.10 0.5 2.1
28 7/0.127 239 0.4 1.2 34/0.10 0.5 2.2
26 7/0.16 150 0.4 1.3 38/0.10 0.5 2.3
24 11/0.16 942 0.4 1.4 42/0.10 0.5 2.4
22 17/0.6 59.4 0.4 1.55 43/0.10 0.5 2.55
20 26/0.16 36.7 0.44 1.80 45/0.12 0.55 2.85
18 41/0.16 23.2 0.44 2.05 51/0.12 0.55 3.5
16 26/0.254 14.6 0.46 2.4 55/0.12 0.56 3.8
