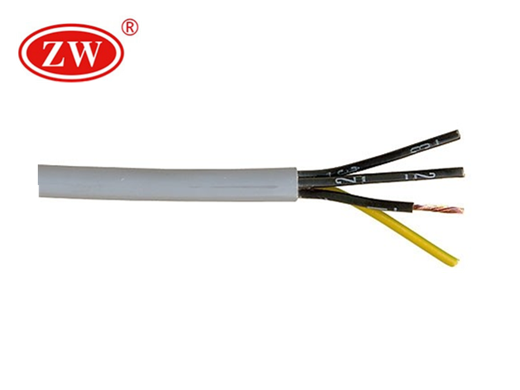

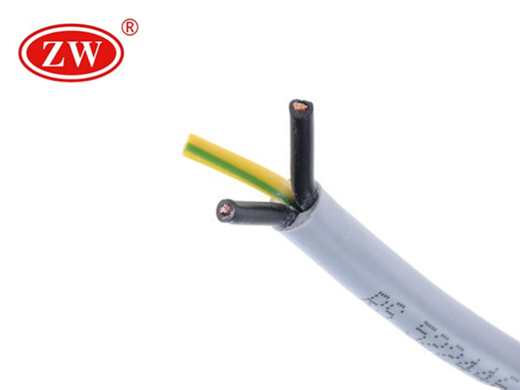

Multi Cores H05VV-F Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Yellow-Black
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC

Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Yellow-Black

  • Sheath Colours

    Black-Grey

  • Current Carrying Capacity

    For current ratings refer to table 4F3 of BS7671 IEC

Product Description

Application:
These cables are suited for medium mechanical stress in damp and wet environments such as refrigerators, washing machines, spin dryers and other appliances, as long as it meets applicable equipment specifications. These cables are also suited for cooking and heating apparatus, provided that the cable does not come into direct contact with the hot parts of the apparatus or with any other heat source. Further applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces of prefabricated building parts. They are not suitable for outdoor use, industrial (except clothing manufacture) or farming applications.
Standard:
VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1
Brief construction:
1) Conductor: Copper or aluminium, Solid 2) Insulation: PVC 3) Number of cores: Single core 4) Other special characteristics: Design and manufacture according t o the requirements of customers.
Cable Construction:
1.Bare copper, fine wire conductor bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
2.PVC conductor insulation TI2 to DIN VDE 0281 part 1
3.Conductors color coded to DIN VDE 0293-308 Green-yellow grounding (3 conductors and above) Conductors stranded in layers with optimal lay-length
4.PVC outer jacket TM2 to DIN VDE 0281 part 1
5.PVC outer jacket color: white or black
Note:
G = with green-yellow grounding
x = without green-yellow grounding
AWG sizes are approximate equivalent values. The actual cross-section is in mm². These types are also available with UL-approval
The above list contains a selection of the types we have in stock, other sizes on request
Cables with 7 conductors are only available as "A" type
6 mm² in adaption (H)

Parameter

Nominal section(mm2) Jacket Color Outer dia.(mm) Reference weight(kg/km) AWG
H05VV-F 2*0.75 black 6.4 50 18
H05VV-F 2*0.75 white 6.4 50 18
H05VV-F 3*0.75 black 6.8 60 18
H05VV-F 3*0.75 white 6.8 60 18
H05VV-F 4*0.75 black 7.4 73 18
H05VV-F 4*0.75 white 7.4 73 18
H05VV-F 5*0.75 blakc 8.3 88

18

H05VV-F 5*0.75 wthie 8.3 88 18
H05VV-F 2*1.0 black 6.8 57 17
H05VV-F 2*1.0 white 15 57 17
H05VV-F 3*1.0 485/0.50 16.7 1027 0.193
H05VV-F 3*1.0 614/0.50 18.5 1287 0.153
H05VV-F 4*1.0 765/0.50 20.6 1626 0.124
H05VV-F 4*1.0 944/0.50 22.8 1972 12.1
