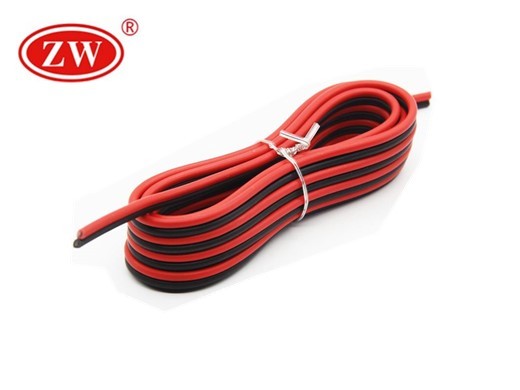

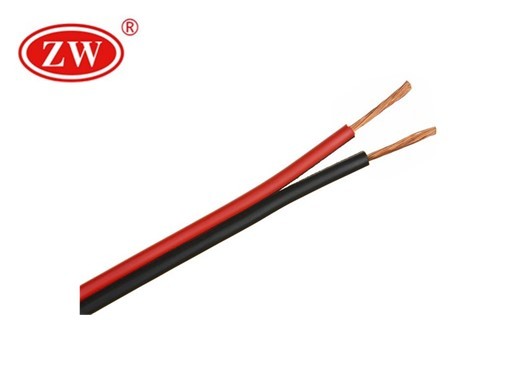

Red and Black Speaker Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red,Black
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC

Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Red,Black

  • Current Carrying Capacity

    For current ratings refer to table 4F3 of BS7671 IEC

Product Description

Application:
The speaker cables are used for speaker ranges, home theater or audio system ,Used for connecting power amplifier and broadcasting systems, For transmitting the audio signals amplified by the amplifier
Standard:
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as t he requirements of customers.
Brief construction:
1) Conductor: Copper or aluminium, Solid 2) Insulation: PVC 3) Number of cores: Single core 4) Other special characteristics: Design and manufacture according t o the requirements of customers.
Speaker Feature:
The products can be devided in three kinds:the colored AUDIO & VIDEO cable, the perspective AUDIO & VIDEO cable and the perspective gold and silver AUDIO & VIDEO cable. The coiored AUDIO & VIDEO cable and the perspective AUDIO & VIDEO cable can choose the multi-phase tag according to the requst to sign the polarity .The polarity line should be blus or red.
Packing:
100m,200m,300m,500m,100Yards per coils with plastic film and wooden pallet.or plastic/wooden reel

Parameter

Model (Size) No./dia. of core(mm) Outer dia.(mm) Jackte/Sheath Color
0.3 mm2 2CX17/0.15mm O.D: 2.0X4.0 PVC Transparent/Red-Black
0.5 mm2 2CX28/0.15mm O.D: 2.2X4.4 PVC Transparent/Red-Black
0.75 mm2 2CX42/0.15mm O.D: 2.4X4.8 PVC Transparent/Red-Black
1.0 mm2 2CX57/0.15mm O.D: 3.0X6.0 PVC Transparent/Red-Black
2.5 mm2 2CX7X20/0.15mm O.D:4.2X8.4 PVC Transparent/Red-Black
4.0 mm2 2CX7X32/0.15mm O.D:5.0X10.0 PVC Transparent/Red-Black
6.0 mm2 2CX7X48/0.15mm O.D: 5.5*11.0 PVC Transparent/Red-Black
