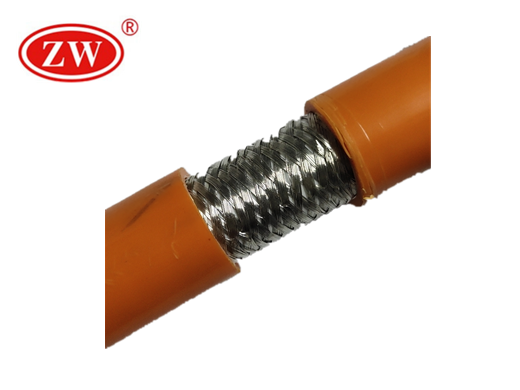

Shield Battery Cable

  • Conductor: Copper
  • Insulation: PVC/TPE
  • Insulation Color: Orange
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC

Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    PVC/TPE

  • Sheath

    PVC /TPE

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    120°C

  • Core Colours

    Orange

  • Sheath Colours

    Orange

  • Current Carrying Capacity

    For current ratings refer to IEC

Product Description

Application:
Shield Battery Cable has good capacities of flexibility, anti-oil, anti-abrasion, flame-retardent, environmental etc. It is widely used in the system of electrical vehicles.
Standard:
Henan Central Plain Cables and Wires Co,.Ltd.
Shielded Battery Cable Extra Flexibility:
When high flexibility required, Battery cable shall make a substitute.
Shield:
Copper/Tinned Copper
Shield Battery Cable Advantage:
High performance of resistant to abrasion, cracking and a variety of chemicals including gasoline, oils, diesel fuels, grease, and acid.

Parameter

Nominal section(mm2) No./dia. of core(mm) Average dia.(mm) Reference weight(kg/km) Conductor resistance at 20℃(Ω/km)
10 322/0.20 9.7 151.6 1.91
16 513/0.20 11.5 224.0 1.61
25 798/0.20 13.0 326.0 0.758
35 1121/0.20 14.5 430.0 0.536
50 1596/0.20 17.0 600.0 0.379
70 2214/0.20 19.5 0.268 818.1
95 2997/0.20 22.0 1082 0.198
