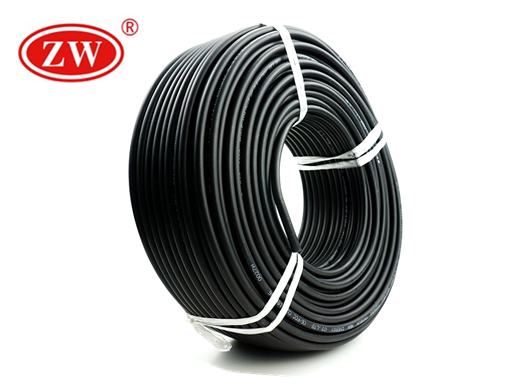

The Characteristics of Solar PV Wire

Application:

Solar pv wire applied to solar panels for power generation and related components of the wiring, connection, particularly suitable for outdoor. Resistance to sunlight, anti-aging, using the low smoke halogen-free flame retardant materials, higher grade, more safety.

Standard:

Adapted to PV systems, 2 Pfg 1169 / 08.2007 and EN 50618:2015.

Electrical Parameters:

Voltage Rating : AC 0.6 / 1.0 kV Max. PV - System Voltage : DC up to 2.0 kV possible Max. Permissible Operating Voltage in AC Systems : 0.7 / 1.2 kV Max. Permissible Operating Voltage in DC Systems : 0.9 / 1.8 kV Test Voltage : AC 6 kV / DC 10 kV (15 min.)

Cable Construction:

Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.

Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.

Core Identification : Red, black or natural

Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.

Cable Colour : Black or Red

Solar PV Wire Advantage:

PV modules operate at high temperatures and are exposed to a variety of environmental conditions. The NEC limits various PV array applications to USE-2 or PV wire. These solar pv cables need to meet the required sunlight resistance and temperature ratings for the environment. Solar Photovoltaic (PV) Wires are manufactured for use in photovoltaic applications, while USE-2 cable types are typically manufactured for underground service entrance applications. Both cable types commonly contain XLPO insulation and can be sunlight resistant and rated for direct burial.
