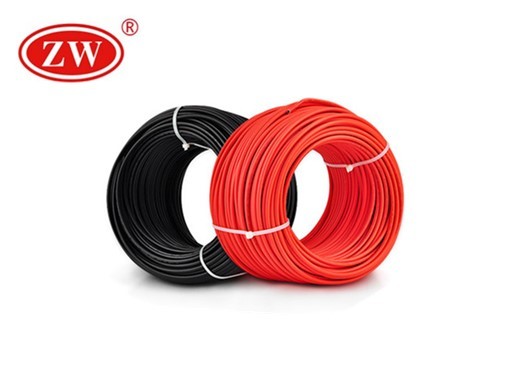

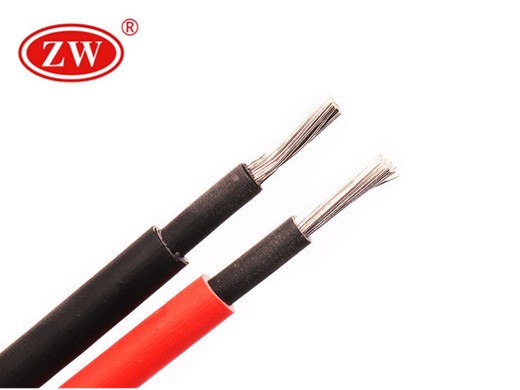

TUV Approved Solar Cable

  • Conductor: Tinnd Copper
  • Insulation: XLPO
  • Sheath:XLPO
  • Insulation Color: Red
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage: 3.5 KV
  • Standard: TUV

Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    XLPO

  • Sheath

    XLPO

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red

  • Sheath Colours

    Black

Product Description

Application:
TUV Approved Solar Cable applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
Standard:
TUV Approved Solar Cable is according to PV systems, 2 Pfg 1169 / 08.2007 and EN 50618:2015.
Electrical Parameters:
Voltage Rating : AC 0.6 / 1.0 kV Max. PV - System Voltage : DC up to 2.0 kV possible Max. Permissible Operating Voltage in AC Systems : 0.7 / 1.2 kV Max. Permissible Operating Voltage in DC Systems : 0.9 / 1.8 kV Test Voltage : AC 6 kV / DC 10 kV (15 min.)
Mechanical Parameters:
Tensile Load :15 N / mm² in operation. 50 N/mm² during installation
Shrinkage Test : According to EN 60811 - 1 - 3
Shore-Hardness : 85 shore A according to DIN EN 53505
Pressure Test at High Temperature : According to EN 60811 - 3 - 1
Dynamic Penetration Test : According to requirements for cables for PV systems, DKE / VDE 411.2.3
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 50618 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation. Core Identification : Red, black or natural
Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation. Cable Colour : Black or Red,Blue
Advantage:
1.Dual wall insulation.Electron beam cross-linked.
2.Excellent resistance to U.V, oil, greases, oxygen, and ozone.
3.Excellent resistance to abrasion.
4.Halogen-free, flame retardant, low toxicity.
5.Excellent flexibility and stripping performance.
6.High Voltage and Current carrying capacity.

TUV Approved Solar Cable Parameter

Construction Conductor Construction Conductor Outer Resistance Max Current Carring Capacity

n×mm2

n×mm

mm

mm

Ω/Km

A

1×1.5

30×0.25

1.58

4.90

13.3

30

1×2.5

50×0.256

2.06

5.45

7.98

41

1×4.0

56×0.3

2.58

6.15

4.75

55

1×6

84×0.3

3.15

7.15

3.39

70

1×10

142×0.3

4.0

9.05

1.95

98

1×16

228×0.3

5.7

10.2

1.24

132

1×25

361×0.3

6.8

12.0

0.795

176

1×35

494×0.3

8.8

13.8

0.565

218

1×50

418×0.39

10.0

16.0

0.393

280

1×70

589×0.39

11.8

18.4

0.277

350

1×95

798×0.39

13.8

21.3

0.210

410

1×120

1007×0.39

15.6

21.6

0.164

480
