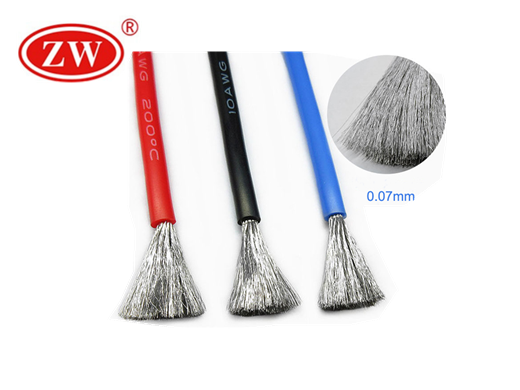

Top Silicone Cable Manufacturers

  • Conductor:Tinned Copper
  • Insulation: Silicone Ruber
  • Insulation Color: Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple
  • Normal volt: 600V
  • Standard: ISO9001, UL, RoHS

Silicone Cable Manufacturers Specification

  • Conductor

    Tinned Copper

  • Sheath

     Silicone

  • Min Operating Temperature

    -30°C

  • Max Operating Temperature

    200°C

  • Core Colours

    Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple

  • Current Carrying Capacity

    For current ratings refer to UL Strandard

Silicone Cable Manufacturers Since 1993

Production Specification:
We hold expertise in offering supreme quality Silicone Cable. These cables are widely demanded by our customers for their excellent conductivity and durability. The cables are demanded by various known companies like, ABB, JSW ISPAT as our Silicone Cable is approved by the IS : 9968 (Pt-1)/88 ISI standards. Quality silicon rubber is used for insulation to protect the cables from water and ensure high tensile strength.
Standard:
UL758, UL62, UL1581
Mechanical properties:
Tensile strength: ≥3.45N/mm²
Elongation at break of insulation: ≥100%
Min.Bending radius: 6×OD
Advantage:
Silicone cables have very good flexibility and good performance of resistance to high temperature, range from -55ºC up to 180ºC. The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength. The braided synthetic yarn covering, which is applied directly over the insulation, gives the cable, because of its short braiding pitch and high compactness, an excellent mechnical protection by maintaining good flexibility. The varnishing of the braiding results in good antifriction properties, high abrasion resistance and excellent chemical resistance against transformer oil, light fuel oil and most types of cleaning agents. In the event of fire, no corrosive and toxic gases will be given off. Hence, damage caused by fire can be kept to minimum.
Customer Service on Silicone Cable:
Being one of the leading Cable Manufacturers, we always put quality in the first place. In order to guarantee the performance of silicone cable , ZW produce the cable in strict accordance with international standards. Our silicone wire is very popular in the world. We promise to provide the qualified products for our customers. If you to know more information about silicone cable price, just leave your message.

Silicone Cable Manufacturers Parameter

AWG Conductor Insulation thickness Braiding thickness Cable OD Resistance
size Structure OD Norminal OD   Norminal Tolerance Ω/KM
NO. mm² No./mm mm mm mm mm mm mm Max.
16 1.31 7/0.49 1.55 1.28 4.11 0.2 4.5 ±0.20 14.6
26/0.254
52/0.18
15 1.65 33/0.254 1.75 1.28 4.31 0.2 4.7 ±0.20 11.3
14 2.08 41/0.254 1.95 1.28 4.51 0.2 4.9 ±0.20 8.96
7/0.62
37/0.26
13 2.63 52/0.254 2.15 1.28 4.71 0.2 5.1 ±0.20 7.1
12 3.31 65/0.254 2.5 1.28 5.06 0.2 5.5 0.3 5.64
  43/0.32 -0.2
11 4.17 83/0.254 2.74 1.28 5.3 0.2 5.7 0.3 4.48
34/0.40 -0.2
10 5.261 35/0.45 3.2 1.28 5.76 0.2 6.2 0.1 3.55
9 6.631 53/0.40 3.98 1.28 6.54 0.2 7 0.1 2.81
8 8.367 70/0.40 4.4 1.28 6.96 0.2 7.4 0.1 2.3
7 10.55 84/0.40 4.6 1.28 7.16 0.25 7.7 0.1 1.79
6 13.3 105/0.40 5.3 1.28 7.86 0.25 8.4 0.1 1.42
5 16.77 133/0.40 6 1.28 8.56 0.25 9.1 0.1 1.12
4 21.15 168/0.40 6.8 1.28 9.36 0.3 10 0.1 0.89
3 26.67 210/0.40 7.6 1.28 10.16 0.3 10.8 0.2 0.707
2 33.62 266/0.40 8.5 1.28 11.06 0.3 11.7 0.2 0.56
1 42.41 217/0.50 9.6 1.28 12.16 0.55 13.3 0.2 0.449
1/0 53.49 276/0.50 11.2 1.53 14.26 0.55 15.4 0.2 0.355
2/0 67.43 342/0.50 12.2 1.53 15.26 0.55 16.4 0.2 0.282
3/0 85.01 437/0.50 13.8 1.53 16.86 0.55 18 0.2 0.223
4/0 107.2 551/0.50 15.5 1.53 18.56 0.65 19.9 0.2 0.177
250kcmil 127 646/0.50 17.5 1.53 20.56 0.65 21.9 0.5 0.151
300kcmil 152 779/0.50 19.5 2.24 22.56 0.65 23.9 0.5 0.125
350kcmil 177 912/0.50 21 2.24 24.06 0.65 25.4 0.5 0.108
400kcmil 203 1036/0.50 23 2.24 26.06 0.65 27.4 0.5 0.0942
