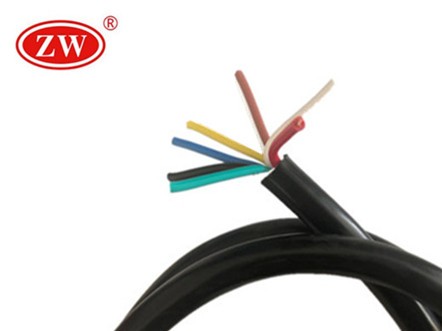

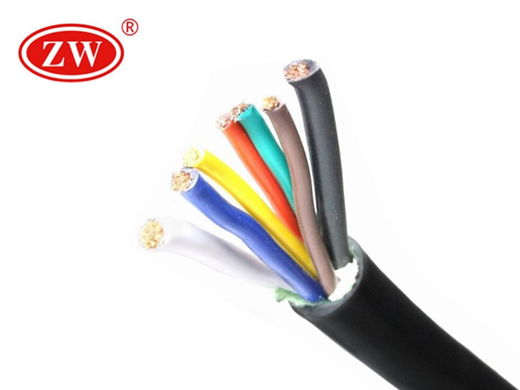

Trailer Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red, Yellow, Black, White, Green, Brown, Blue
  • Temperature Range: -20°C to +120°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC

Trailer Cable Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    PVC

  • Sheath

    PVC

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    120°C

  • Core Colours

    Red, Yellow, Black, White, Green, Brown, Blue

  • Sheath Colours

    Black

  • Current Carrying Capacity

    IEC,SAE J1128

The Characteristics of Trailer Cable

Application:
General-purpose primary wires covered in a high quality, PVC jacket. Especially designed for reliability as an integral part of the brake and safety system. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.
Standard:
ICE,SAE J1128
Trailer Cable Detail:
Shape: Round Production process: Injection Features: Waterproof Contacts material: copper Insulator Material: Engineering Plastics Model: 12N (applies to European car).
Trailer Wire Advantage:
High performance of resistant to abrasion, cracking and a variety of chemicals including gasoline, oils, diesel fuels, grease, and acid.
Standard Color Code:
4 Conductor: Red, Yellow, Green, Brown
6 Conductor: Red, Yellow, Black, White, Green, Brown
7 Conductor: Red, Yellow, Black, White, Green, Brown, Blue
