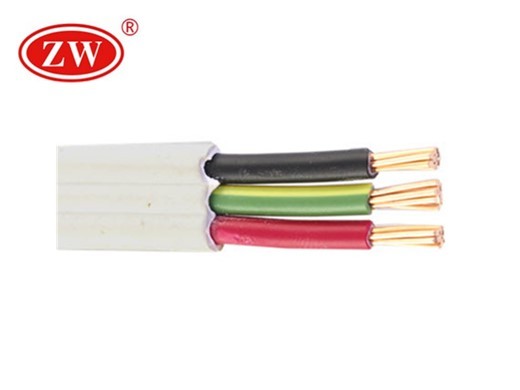

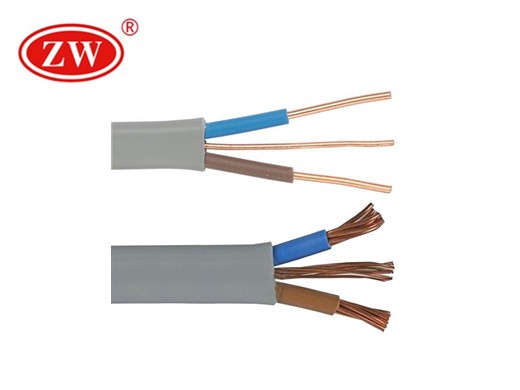

1.5mm Twin and Earth Flat Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: 3 Colors
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC,BS,AUS

Specification

  • Conductor

    Plain Annealed Copper Class 2 to BS EN 60228

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Red,Blue,Yellow-Green,Black

  • Sheath Colours

    White or Grey

  • Current Carrying Capacity

    For current ratings refer to table 4F3 of BS7671 IEC

Product Description

Application:
This porduct is suitable for linking the household electrical appliance,small electric tools,Instrument and power lighting devices with the rated voltage equal or less than 450/750V AC.The operation temperature of the wire is 90℃ for BV-90 and RV-90,BV-105 modle not more than 105℃,The other is 90℃.Installation temperature not lower than 0℃.
Standard:
Henan Central Plain Cables and Wires Co,.Ltd.
Brief construction:
1.Fine bare copper strands 2. The core or cores shall be laid parallel with the uninsulated circuit protective conductor 3.For twin cores, the protective conductor centrally placed between cores in same plane 4.For 3 cores, the protective conductor centrally placed between black and grey cores in same plane
Technical Characteristics:
1. Minimum bending radius: 4xOverall diameter 2. Short circuit temperature: +160º C 3. Flame retardant: IEC 60332.1 4.Insulation resistance: 10 MΩxkm


Parameter

Nominal section(mm2) No./dia. of core(mm) Average dia.(mm) Reference weight(kg/km) Conductor resistance at 20℃(Ω/km)
1.5 7/0.52 3.5 20.6 12.1
2.5 7/0.67 4.2 33 7.41
4.0 7/0.85 4.8 48 4.61
6.0 7/1.04 5.6 68 3.08
10.0 7/1.35 7.6 115 1.83
16.0 7/1.70 8.8 176 1.15
25.0 7/2.14 11 272 0.727
