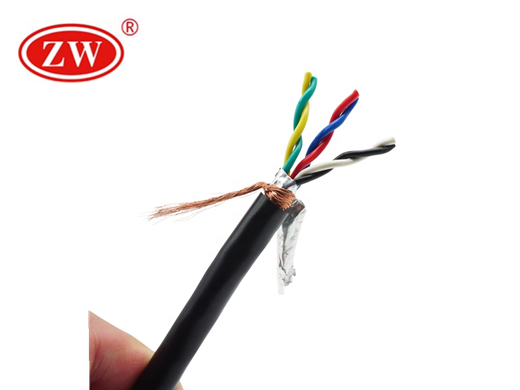

Twisted Pair Control Shielded Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Brown, Blue, Yellow-Green,White, Blue, Brown and etc
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC,VDE,GB

Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Blue, Yellow-Green,White, Blue, Brown and etc

  • Sheath Colours

    Black,White

  • Current Carrying Capacity

    For current ratings refer to IEC

Product Description

Application:
Twisted Pair Control Shielded Cable with double shielding effect, it can be used as measuring, monitoring and control cable in machine tool manufacturing, complete equipment installation engineering, power station, Fixed installation of heating and air conditioning systems, refrigeration equipment, office automation equipment, lighting circuits, and automation equipment, flexible connection, and data processing systems.
Standard:
IEC,ISO9001, ROHS,SGS
300v Rvvp Shielded Cable:
Insulation: PVC
Core Color: Any color .
Shielding: Copper Wire
.Jacket : PVC
Shielded Cable Characteristic:
Good oil resistant, abrasion resistant, chemical solventresistant, radiation resistant.
Short twist pitch, stable transmission characteristics .
Double shielding,resistance to electromagnetic interference
Bending radius allowance of the cable.
Properties of Twisted Pair Control Shielded Cable:
Heat-resistant, flame retardant, excellent insulation performance, stable chemical performance, excellent transmission performance due to the use of high-quality polyethylene for stranded wire shielding, and effective resistance to electromagnetic interference due to the use of a new type of aluminum foil, braided copper mesh double layer shielding.
Our Service:
(1) MUTUAL BENEFIT: Our offer will be reasonable, our price will be cheaper in the same quality.
(2) CUSTOMIZE: We can make the product as your request, Specification and Quality can meet your request.
(3) OEM: (1)Printing your Logo.
(4)Designing your packing.
(5) MIX ORDER: We accept mix order, different model and small quantity order.
(6) AFTER SERVICE: 70 Years Guarantee.

Parameter

Model AWG Conductor Insualtion Spiral Jacket
Conductor Diameter Max. Resistance at 20°C Thickness OD Thickness Min. Dia.
(NO/mm) MΩ/km mm mm mm mm
30 7/0.1 381 0.4 1.1 32/0.10 0.5 2.1
28 7/0.127 239 0.4 1.2 34/0.10 0.5 2.2
26 7/0.16 150 0.4 1.3 38/0.10 0.5 2.3
24 11/0.16 942 0.4 1.4 42/0.10 0.5 2.4
22 17/0.6 59.4 0.4 1.55 43/0.10 0.5 2.55
20 26/0.16 36.7 0.44 1.80 45/0.12 0.55 2.85
18 41/0.16 23.2 0.44 2.05 51/0.12 0.55 3.5
16 26/0.254 14.6 0.46 2.4 55/0.12 0.56 3.8
