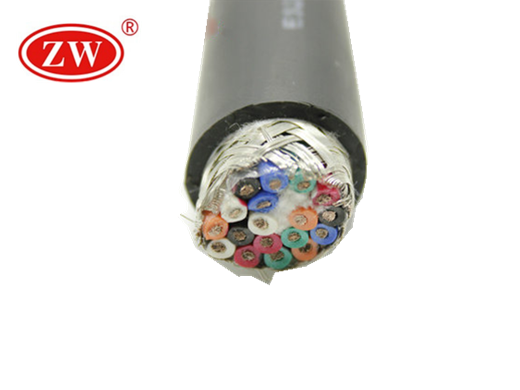

UL Types Shielded Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Brown, Blue, Yellow-Green,White, Blue, Brown and etc
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: UL

Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Blue, Yellow-Green,White, Blue, Brown and etc

  • Sheath Colours

    Black,White

  • Current Carrying Capacity

    For current ratings refer to UL

Product Description

Application:
Suitable for electronic equipment matching wiring, inside and. outside of the machine(Such as office computer system, recorder, X machines etc ) .
Can be used as a measurement, detection and control cable. Used in machine tool manufacturing, equipment installation power plant, heating and air-conditioning systems, refrigeration equipment, office automation equipment and data processing system.
Standard:
UL758 & UL1581
UL Tpyes Shielded Cable Structure:
Insulation: Special hardness heat-resistant and flame- retardant PVC insulation.
Core Color: Any color .
Shielding: PET-Al-PET Tape + bare copper or tinned copper braiding + same specifications of drain wire .Jacket: Mixed 80C heat resistant and flame retardant.
PVC, Pass the VW-1 flame test standard. .Jacket Color: Black(RAL9005) Green(RAL6018)Orange(RAL2003) Violet(RAL4001) Special colors ,can be customized
Shielded Cable Characteristic:
Good oil resistant, abrasion resistant, chemical solventresistant, radiation resistant.
Short twist pitch, stable transmission characteristics .
Double shielding,resistance to electromagnetic interference
Bending radius allowance of the cable.
Our Service:
(1) MUTUAL BENEFIT: Our offer will be reasonable, our price will be cheaper in the same quality.
(2) CUSTOMIZE: We can make the product as your request, Specification and Quality can meet your request.
(3) OEM: (1)Printing your Logo.
(4)Designing your packing.
(5) MIX ORDER: We accept mix order, different model and small quantity order.
(6) AFTER SERVICE: 70 Years Guarantee.

Parameter

Model AWG Conductor Insualtion Spiral Jacket
Conductor Diameter Max. Resistance at 20°C Thickness OD Thickness Min. Dia.
(NO/mm) MΩ/km mm mm mm mm
30 7/0.1 381 0.4 1.1 32/0.10 0.5 2.1
28 7/0.127 239 0.4 1.2 34/0.10 0.5 2.2
26 7/0.16 150 0.4 1.3 38/0.10 0.5 2.3
24 11/0.16 942 0.4 1.4 42/0.10 0.5 2.4
22 17/0.6 59.4 0.4 1.55 43/0.10 0.5 2.55
20 26/0.16 36.7 0.44 1.80 45/0.12 0.55 2.85
18 41/0.16 23.2 0.44 2.05 51/0.12 0.55 3.5
16 26/0.254 14.6 0.46 2.4 55/0.12 0.56 3.8
